Views: 0 Author: Site Editor Publish Time: 2026-02-06 Origin: Site
Quench cracking refers to cracks that form during the quenching process or shortly after quenching, sometimes appearing after a period of room-temperature storage (delayed cracking). In stainless steel ball production, quench cracks usually initiate at the surface and propagate inward, often invisible to the naked eye at early stages.
Because stainless steel balls are precision components with strict roundness and surface finish requirements, even micro-cracks can result in premature failure during service.
Heating stainless steel balls to above the critical temperature (Ac₁ or Ac₃, depending on steel grade)
Holding at temperature to achieve full austenitization
Rapid cooling at a rate exceeding the critical cooling speed to below the martensite start temperature (Ms)
Name1
Name2
1.Intrinsic Brittleness of Martensite
Martensite formed during quenching is inherently brittle, especially in medium- and high-carbon martensitic stainless steels. Higher carbon content reduces fracture strength and increases the tendency for crack initiation.
2.Phase Transformation Stress
The transformation from austenite to martensite is accompanied by volume expansion. When this transformation occurs non-uniformly within the stainless steel ball, high internal tensile stress develops, which can exceed the material’s fracture strength.
3.Excessive Cooling Rate
Overly aggressive quenching media such as water can cause steep temperature gradients between the surface and core of stainless steel balls, resulting in severe thermal stress and cracking.
4.Metallurgical Defects

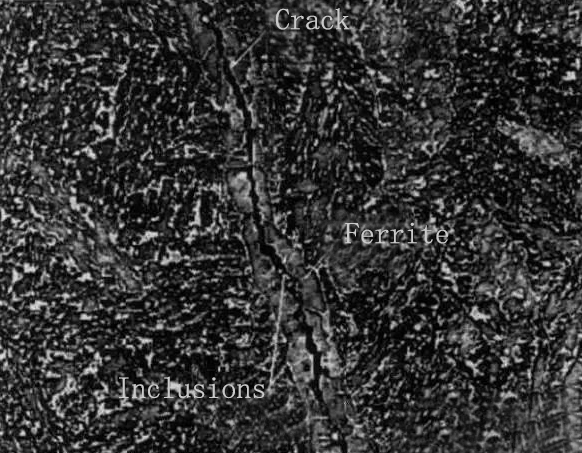

Inclusions, segregation, carbide networks, or hydrogen content in stainless steel can act as stress concentrators. These defects significantly increase quench cracking sensitivity in stainless steel balls.
5.Improper Heating Conditions
Excessive quenching temperature or prolonged holding time leads to coarse austenite grains, which transform into brittle martensite and lower crack resistance.
6.Surface and Processing Defects
Grinding marks, micro-cracks, and surface damage introduced before heat treatment can trigger quench cracking under thermal and transformation stress.
1.Optimize Material Selection
Choose stainless steel grades with balanced carbon and alloy content. High-purity steel with low inclusion levels significantly reduces crack initiation risk.
2.Improve Pre-Quench Microstructure
Normalizing or spheroidizing heat treatment before quenching refines grain size and ensures uniform structure, enhancing crack resistance.
3.Control Heating Parameters
Use appropriate austenitizing temperatures and avoid excessive soaking time to prevent grain coarsening. Vacuum or controlled-atmosphere furnaces are recommended.
4.Select Suitable Quenching Media
Oil quenching, polymer quenching, or gas quenching is preferred over water quenching for stainless steel balls to reduce cooling intensity while maintaining hardness.
5.Apply Advanced Quenching Techniques
Martempering (step quenching)
Austempering (isothermal quenching)
Double-stage quenching (strong cooling followed by mild cooling)
6.Immediate Tempering After Quenching
Timely tempering relieves residual stress, stabilizes martensite, and effectively prevents delayed quench cracking in stainless steel balls.
Stainless steel balls are widely used in bearings, medical devices, valves, and high-precision mechanical systems
Reduced fatigue life
Loss of dimensional accuracy
Premature failure in service
