What Are The Methods for Grinding And Machining Bearing Ceramic Balls?

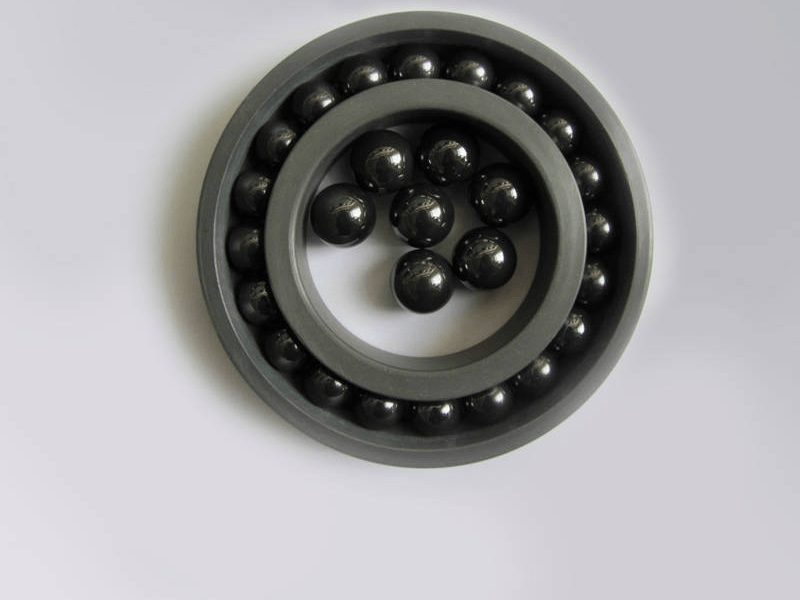

Introduction of Bearing Ceramic Balls

Ceramic bearing balls are among the most advanced rolling elements used in modern mechanical systems. From aerospace turbines to high-speed electric motors, these components operate in environments where traditional steel balls struggle to perform efficiently. The exceptional hardness, low density, corrosion resistance, and thermal stability of ceramic materials make them ideal for demanding applications that require high speed, low friction, and long service life.

One of the most widely used materials in this category is silicon nitride (Si₃N₄), which offers superior mechanical strength and wear resistance. These ceramic balls can withstand temperatures approaching 1000 °C while maintaining structural integrity and dimensional stability. They also feature hardness levels of around 75–80 HRC, making them significantly harder than conventional bearing steel.

However, the very properties that make ceramic balls so desirable—extreme hardness and brittleness—also make them incredibly difficult to machine. Unlike metals, ceramics cannot be easily cut with standard tools. Instead, specialized grinding and polishing processes must be used to achieve the precise spherical shape and mirror-like surface finish required for high-performance bearings.

Grinding and machining techniques for ceramic bearing balls have evolved dramatically over the past few decades. Engineers now rely on a combination of diamond grinding, advanced polishing, and ultra-precision finishing technologies to achieve tolerances measured in microns and surface roughness measured in nanometers. Understanding these processes is essential for anyone involved in precision engineering, bearing manufacturing, or advanced ceramics production.

Grinding process of Bearing Ceramic Balls

The grinding principle of bearing ceramic balls mainly follows that of bearing steel balls. Both utilize abrasive grains to remove surface material, reducing the diameter and surface roughness of the ball, thus improving precision. Current ball-forming principles primarily include the "probabilistic ball-forming principle" and the "full-surface envelopment ball-forming principle." Probabilistic ball-forming involves randomly changing the ball's rotation angle during processing, with the ball undergoing multiple cycles of processing until it is finally formed. Full-surface envelopment ball-forming, on the other hand, involves systematically changing the ball's rotation angle, ensuring the grinding trajectory uniformly envelops the entire surface of the ball, ultimately resulting in a formed ball.

1.Cup-shaped grinding tool grinding process

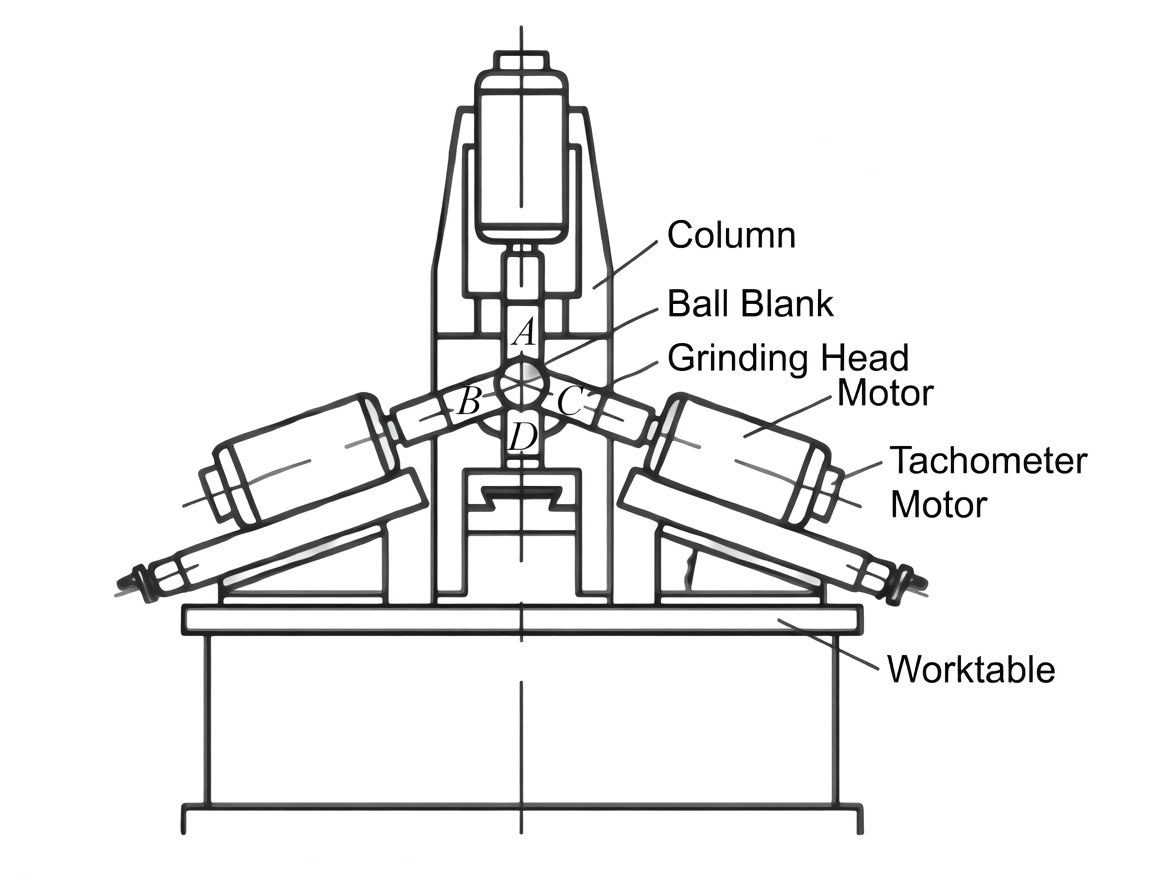

There are three main grinding methods for cup-shaped grinding tools: single-axis, double-axis, and four-axis cup-shaped grinding tool processing methods. This machining method uses four axes with driving force, which can continuously change the direction of motion, thereby changing the rotation angle of the sphere. It can machine spheres with high precision, but the machining equipment is complex and can only machine one sphere at a time. It is mostly used for positioning spheres and standard spheres and cannot meet the batch production needs of industry.

2.Traditional V-groove grinding methods

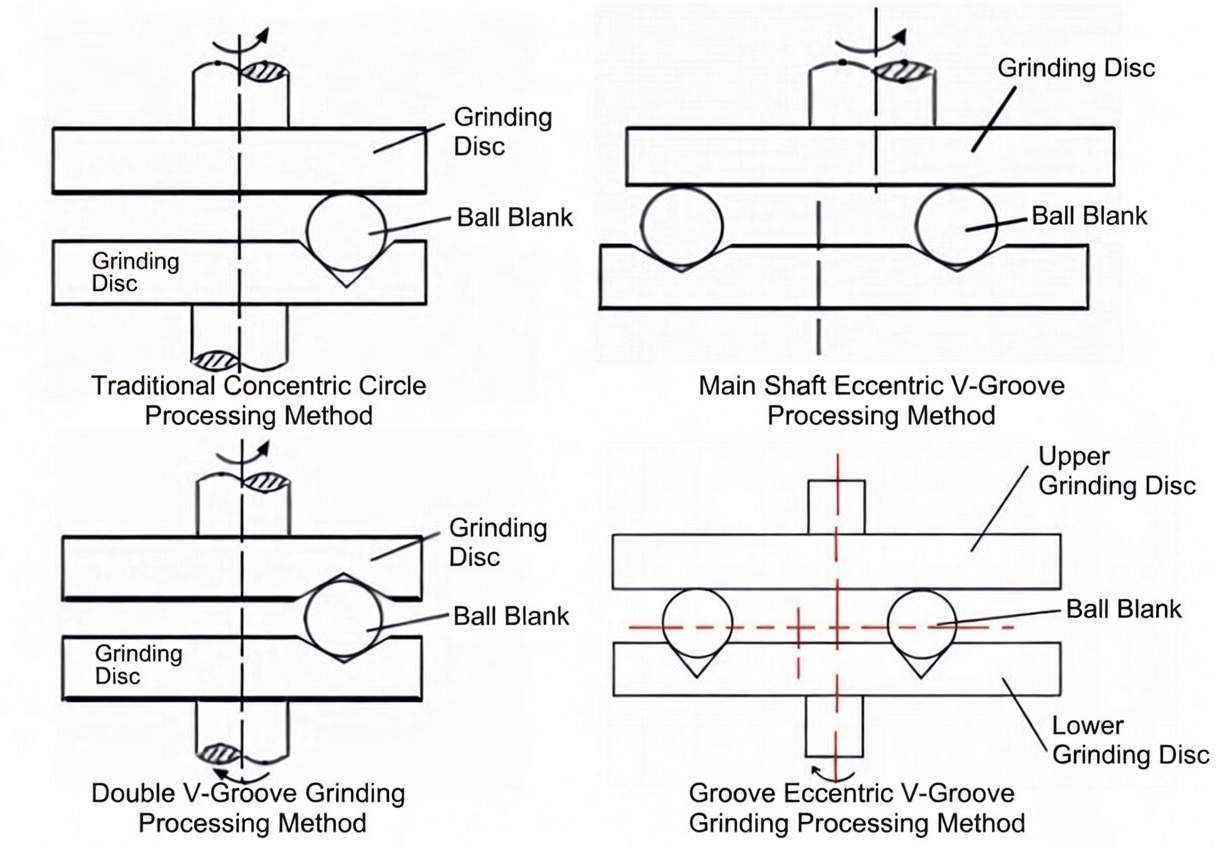

mainly include ordinary concentric circle V-groove grinding, double V-groove grinding, quasi-double V-groove grinding, and eccentric V-groove grinding.

3.Active Rotation Angle Control Grinding

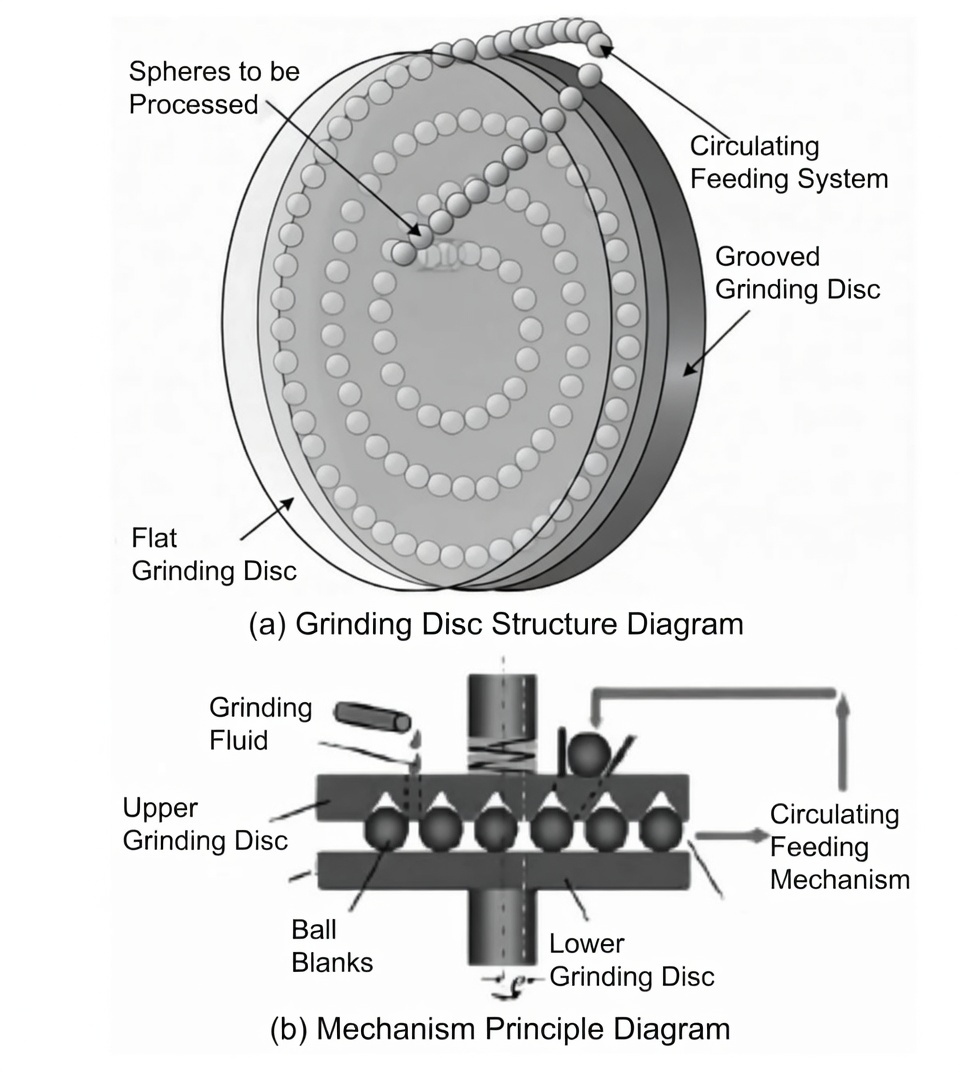

Active rotation angle control grinding involves separating the two sides of the grinding disc groove into two parts, including upper and lower discs. This can involve three or two discs rotating independently. By controlling the rotation speed of the grinding discs, the orientation of the sphere's rotation axis is adjusted, allowing the sphere's rotation angle to change continuously. The grinding tracks on the sphere's surface can cover most or even the entire sphere surface. Currently, this method results in a uniformly distributed grinding trajectory on the sphere surface, improving machining accuracy. However, this grinding method involves numerous drive and transmission devices, leading to a complex structure and limiting its further application.

4.Magnetorheological Fluid Grinding (MFD)

Compared to conventional concentric V-groove grinding, MFD increases the material removal rate of the ball blank surface by more than 50 times. The apparatus typically uses a row of strip-shaped permanent magnets on the lower plate. Under the influence of the magnetic force, the magnetic fluid in the MFD concentrates towards the direction of strong magnetic force, while the non-magnetic fluid moves towards the direction of weak magnetic force, thus suspending the abrasive particles in the MFD. During the grinding process, the ball blank rotates on its own axis within the MFD and also revolves around the rotating plate. The suspended abrasive grains enable ultra-precision grinding.

5.Variable Curvature Groove Grinding

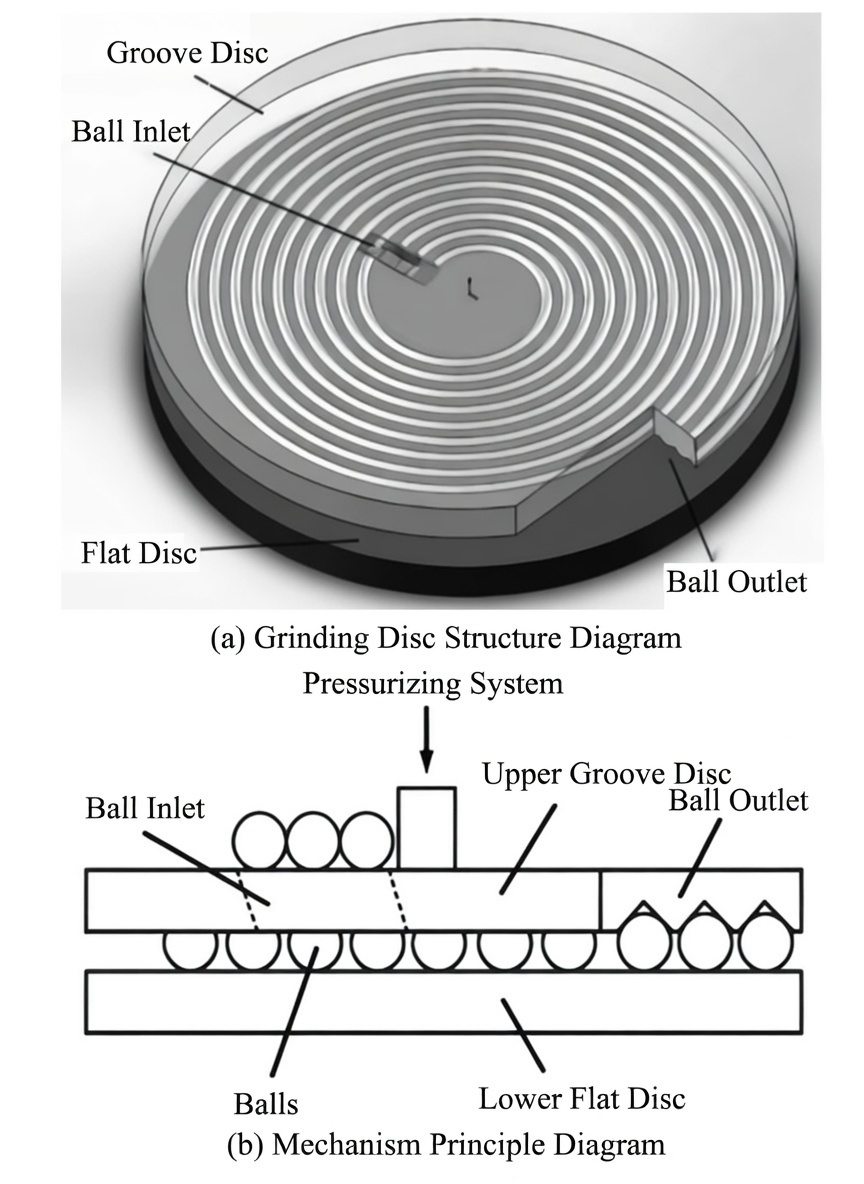

The variable curvature groove grinding method allows for a wider range of changes in the rotation angle, resulting in a more uniform and complete distribution of the ball's machining trajectory. During the grinding process, the ball rolls outward from the center of the grinding disc, causing the contact point between the ball and the groove to constantly change. The relative speed of rotation also changes continuously, leading to a continuous variation in the rotation angle and improved processing efficiency and accuracy. This method changes the ball's rotation angle by varying the radius of curvature, achieving highly efficient and consistent ball machining. However, the ball capacity is limited by the equipment, making large-scale batch production difficult.
