Views: 0 Author: Site Editor Publish Time: 2025-11-07 Origin: Site
In the fields of mechanical manufacturing and engineering, stainless steel balls are extremely common yet crucial components. Whether in rolling bearings, automotive transmission systems, mining machinery, or precision instruments, the performance of steel balls directly determines the operational stability and lifespan of the equipment. "Hardness uniformity"—the consistency of hardness distribution across the entire surface and interior of the steel ball—is a key indicator of its quality.
Imagine a stainless steel balls with some areas of softer surface and a harder center or side. Under high-speed rotation or pressure, the softer areas will undergo plastic deformation or wear first, causing the ball to become out of round, misaligned, or even break. This not only affects equipment operating efficiency but can also lead to serious safety hazards. Therefore, achieving uniform hardness distribution is one of the most critical technical goals in stainless steel balls manufacturing.
The hardness uniformity of stainless steel balls does not come from nothing; it depends on two core factors—the quenching heat treatment process and the quality of the raw materials. Heat treatment determines the changes in the internal structure and property distribution of the steel, while the purity and compositional uniformity of the raw materials determine whether the heat treatment can achieve its optimal effect. The two complement each other and are indispensable.
"Hardness" refers to a material's ability to resist indentation, scratching, or abrasion. For stainless steel balls, the level of hardness directly affects their wear resistance, deformation resistance, and fatigue life. Generally, the higher the hardness of a stainless steel ball, the less prone its surface is to wear, making it suitable for high-speed or high-load working environments.
Common hardness testing methods include Brinell hardness (HB), Rockwell hardness (HRC), and Vickers hardness (HV). Among these, Rockwell hardness is most commonly used for steel ball testing because it accurately reflects the material's compressive strength and hardening effect. For example, high-carbon chromium steel balls used in rolling bearings typically require an HRC value above 60 to ensure long-term operational stability.
However, simply pursuing high hardness is insufficient. If the hardness distribution is uneven, even if the average hardness meets requirements, localized "soft spots" or "brittle spots" may appear. Soft spots lead to accelerated wear, while brittle spots may fracture under impact. Therefore, uniform hardness is more important than simply high hardness. Only when the hardness of all parts of the steel ball is consistent can it maintain stable friction performance and durability during long-term operation.
Hardness uniformity refers to the consistent hardness value of a stainless steel ball from its surface to its core, and from one point to another. Ideally, a steel ball should have a gradient structure with a slightly higher hardness at the surface and a slightly lower hardness at the center. This ensures both surface wear resistance and internal toughness. However, excessive hardness differences can lead to performance imbalances.
The importance of hardness uniformity is mainly reflected in the following aspects:
Improved wear resistance: When all parts have uniform hardness, the steel ball wears at the same rate during rolling contact, significantly extending its overall service life.
Preventing fatigue failure: Uniform hardness avoids localized stress concentration, reducing the risk of microcrack initiation and propagation.
Maintaining geometric accuracy: Uneven hardness often leads to deformation, affecting the roundness and dimensional accuracy of the steel ball, ultimately impacting the bearing's operational accuracy.
Enhancing overall stability: Uniform hardness implies a stable metallographic structure, which helps the steel ball maintain consistent performance under high-temperature and high-load conditions.
In steel ball production, common quenching methods include oil quenching, water quenching, and air cooling. Different media have different cooling rates, resulting in drastically different effects on hardness distribution and microstructure. We analyze them one by one below:
1.Water Quenching
Water quenching has a fast cooling rate, rapidly forming a high-hardness martensite structure. It is suitable for quenching high-carbon steel or alloy steel, achieving high surface hardness. However, its disadvantages are also significant—rapid cooling can easily lead to cracks and deformation, especially in large-diameter steel balls or materials with many impurities, making uneven hardness more likely. Therefore, water quenching is generally used for small steel balls where size requirements are not critical.
2.Oil Quenching
Oil quenching has a relatively slow cooling rate, effectively avoiding cracking caused by excessive thermal stress. Due to its more stable cooling process, oil quenching better ensures the uniformity and stability of the steel ball's hardness. Especially in high-carbon chromium bearing steel (such as GCr15), oil quenching can obtain an ideal martensite + retained austenite microstructure, balancing high hardness and good toughness.
3.Air Cooling
Air cooling is the gentlest quenching method, suitable for steels with high alloy element content and strong hardenability. Cooling with natural air or forced draft achieves a relatively uniform temperature change, reducing stress concentration. Although air cooling results in slightly lower hardness, its hardness distribution is extremely uniform, making it a commonly used method in the production of high-precision steel balls.
To truly achieve a high degree of consistency in the hardness of steel balls, it is essential to thoroughly optimize various process parameters of heat treatment. The following aspects are particularly crucial:
1.Control of Cooling Rate
Cooling rate is a key factor affecting microstructure transformation. Too fast a rate can lead to cracking, while too slow a rate results in insufficient hardening. Modern factories commonly employ staged cooling or controlled atmosphere furnaces, using different cooling media at different stages to minimize the temperature difference between the surface and the core, ensuring consistent hardening depth.
2.Adjustment of Holding Time
The holding time of the steel ball at the austenitizing temperature should be sufficient to allow carbon and alloying elements to diffuse fully. If the time is too short, the microstructure will be uneven; if the time is too long, the grains will coarsen, leading to a decrease in hardness. Generally, the holding time is adjusted according to the ball diameter and composition to achieve sufficient microstructure homogenization.
3.Selection of Quenching Media
Different steel grades are suitable for different cooling media. For alloy steels with high hardenability, oil quenching or gas quenching is ideal; while ordinary carbon steels are commonly quenched with water or polymer quenching. In recent years, controllable polymer solutions have become a new trend, which can adjust the cooling rate according to the concentration, minimizing hardness deviation while ensuring high hardness.
In steel ball manufacturing, selecting the right steel grade is fundamental to ensuring uniform hardness and overall performance. Different types of steel have significant differences in chemical composition, microstructure, and hardenability, which affect the heat treatment effect differently. Therefore, material selection should be comprehensively considered based on the usage environment, load conditions, and process characteristics.
Comparison of High-Carbon Steel and Low-Carbon Steel
The two main types of materials commonly used in steel balls are high-carbon steel and low-carbon steel.
High-Carbon Steel (Carbon content 0.6%~1.0%)
This type of steel has good hardenability and high hardness. After proper quenching and tempering, a high-strength martensitic structure can be obtained, making it the first choice for manufacturing high-precision, high-load bearing steel balls. For example, high-carbon chromium bearing steels such as GCr15 and SUJ2 can achieve a hardness of HRC 60 or higher and have excellent wear resistance.
However, the disadvantage of high-carbon steel is its poor toughness; it is prone to cracking if heat treatment is not properly controlled. Therefore, very precise temperature control and cooling medium selection are required during production to avoid an excessively hard surface and a soft core.
Low-carbon steel (carbon content less than 0.3%)
Has good plasticity and toughness, but it is difficult to achieve high hardness after quenching. It usually requires carburizing or nitriding to form a high-hardness compound layer on the surface while maintaining toughness inside. These steel balls are mostly used in equipment with medium to low loads or low speeds, where the requirement for uniform hardness is relatively low.
Among numerous steel ball manufacturers, Risheng Stainless Steel Balls maintains its leading position in the industry thanks to its strict process control and advanced testing system. Through years of technological accumulation and quality management, Risheng excels in the uniformity of steel ball hardness, and its products are renowned for their "high precision and high stability" in both domestic and international markets.
1.Comprehensive Quality Control to Ensure Consistent Hardness of Every Steel Ball
From raw material procurement, Risheng Steel Balls has established a comprehensive quality traceability system. All steel undergoes chemical composition spectral analysis and microstructure inspection to ensure consistent composition in each batch. During heat treatment, an intelligent temperature control system and automatic cooling adjustment technology are used to ensure that the temperature distribution error within the furnace does not exceed ±3℃, guaranteeing that the heat treatment curves of each steel ball are completely consistent in each stage of heating, quenching, and tempering.

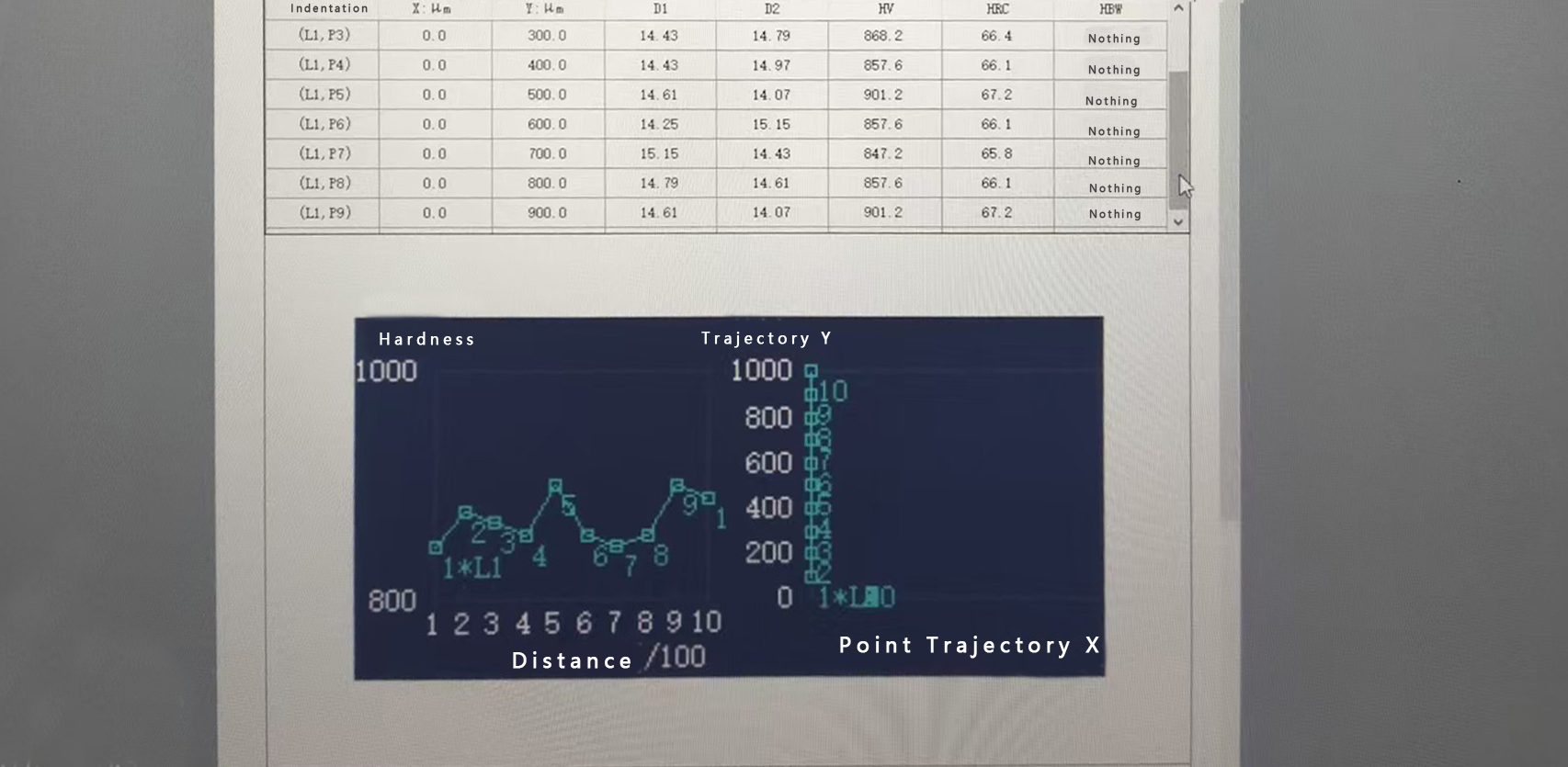

After quenching, Risheng also conducts multi-point hardness testing and microstructure sampling inspection on the steel balls, controlling hardness differences within HRC 1, achieving international first-class precision standards. Test results show that the surface and core of the steel ball have almost identical hardness, and the microstructure is composed of fine martensite, exhibiting extremely stable performance.
2.Introduction of Advanced Testing Equipment, Building a Data-Driven Quality System
To ensure the scientific rigor and impartiality of the test results, Risheng steel balls utilize imported German Rockwell hardness testers, Vickers microhardness testers, and ultrasonic non-destructive testing systems. These devices can perform 360° automatic testing of the steel balls, accurately capturing any possible hardness anomalies. Test data is uploaded to the company's database in real time, where an AI system performs trend analysis and process optimization, providing precise references for subsequent batch production.
Risheng has also established an internal laboratory equipped with metallographic microscopes and scanning electron microscopes (SEM) to conduct regular random checks on the microstructure of the steel balls. Test reports show that the internal microstructure of the steel balls is uniform, with fine grains, no impurity aggregation or carbide segregation, and the hardness uniformity meets international first-class standards.
3.Product Performance Verification: Quality Wins Trust
After long-term operational testing, Risheng steel balls have demonstrated excellent stability in practical applications. Whether in high-speed bearings, precision instruments, or heavy-duty machinery, Risen steel balls demonstrate advantages such as low wear rate, low noise, and long lifespan. Some customers have reported that the service life of their products is more than 30% longer than that of similar brands, and they maintain a smooth working surface without peeling or cracking even under extreme working conditions.
