Precision Ø8mm G10 Stainless Steel Balls: 1.3541 Material with Ra ≤ 0.02μm Mirror Finish A New Benchmark for High-End Bearing Balls in China

RiSheng Stainless Steel Balls Company Background

Founded in June 1995 and headquartered on the eastern shore of Taihu Lake in Wujin District, Changzhou—conveniently close to Shanghai—Changzhou Risheng Steel Ball Co., Ltd. has nearly 30 years of expertise in precision steel ball R&D, production, and sales. Building on the legacy of the former Wujin Metal Ball Research Institute, Risheng operates a complete in-house production chain—from raw material selection and cold heading to flashing, heat treatment, hard grinding, soft grinding, fine lapping, and sorting. The company produces bearing steel balls (AISI 52100/GCr15), stainless steel balls (AISI 201/304/316/420/440/1.3541/X47Cr14, etc.), and carbon steel balls in diameters from 0.8 mm to 25.4 mm, with precision grades reaching G10, G16, G40, and higher. Annual output exceeds hundreds of millions of balls, with exports to Europe, the US, Japan, Korea, and leading domestic OEMs.

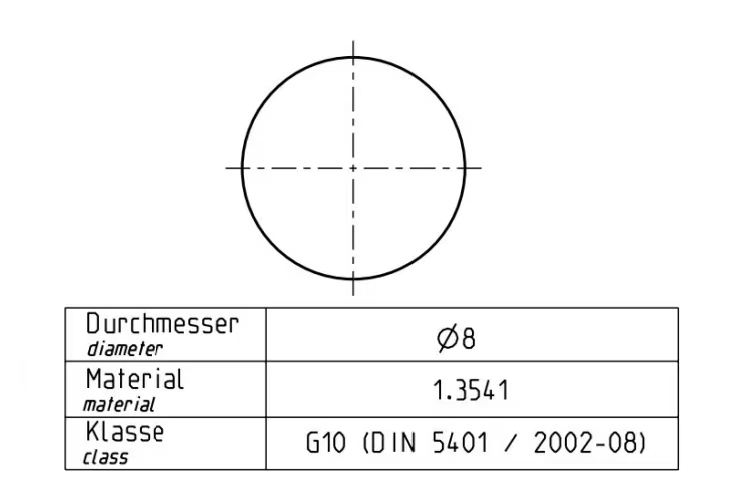

Core Specifications of the Ø8mm G10 1.3541 Stainless Steel Ball (From RISHENG Official Drawing)

• Brand: Risheng (Changzhou Risheng Steel Ball Co., Ltd.)

• Nominal Diameter: Ø8.000 mm

• Material: 1.3541 (X47Cr14 martensitic stainless bearing steel)

• Grade: G10 (top commercial precision level per DIN 5401)

• Diameter Tolerance (Grenzabmaße): ±9.75 μm

• Ball Diameter Variation (Sphericity) VDws: ≤ 0.25 μm

• Surface Roughness Ra: ≤ 0.02 μm (mirror-like finish for ultra-low friction)

• Lot Diameter Variation VDwL: ≤ 0.5 μm

• Lot Diameter Range VDwA: ≤ 1 μm

• Sorting Interval IG: 1 μm (19 total bins: -9 to -1 / 0 / +1 to +9 μm)

Risheng's Manufacturing Process & Quality Highlights

• Raw Material: Premium imported or top-tier domestic 1.3541 bars with vacuum degassing to eliminate inclusions.

• Heat Treatment: Protective atmosphere continuous furnace + cryogenic treatment for uniform hardness (58–62 HRC) and minimal retained austenite.

• Grinding & Polishing: Multi-stage oil-stone grinding + precision lapping machines + proprietary polishing techniques to achieve the ultra-mirror Ra value.

• Inspection: 100% checked with sphericity instruments (roundness ≤ 0.25 μm), roughness testers, and sorting gauges; each batch includes original factory reports for material spectrum, dimensions, and surface finish.

• Custom Sorting: Supports 1 μm fine grouping, laser marking for traceability, and client-specific ST binning.

Why does 1.3541 (X47Cr14) material perform so well in Stainless Steel Balls?

Compared to conventional bearing steel like GCr15/AISI 52100, Risheng's 1.3541 offers superior corrosion resistance (14% Cr content), making it ideal for humid, frequent-cleaning, or mildly acidic/alkaline environments while retaining excellent hardness and fatigue life. Key applications include:

• High-speed dental handpiece bearings (>400,000 rpm, minimal lubrication)

• Food & pharmaceutical pumps/valves (FDA-compatible indirect contact)

• Marine equipment and ship precision drives

• EV powertrain components (motors/reducers in wet-heat conditions)

• Semiconductor/optical instrument low-vibration miniature bearings

Market Positioning & Competitive Edge

While Swiss, German, and Japanese brands dominate the ultra-premium G5+ segment with high prices and long lead times, Risheng's G10 stainless steel balls deliver comparable precision at 30–50% lower cost, with delivery in just 2–4 weeks. Leveraging China's robust supply chain, Risheng has become a preferred alternative for many Tier-1 suppliers. With the 2026 boom in EVs, medical devices, and industrial robotics, Risheng forecasts over 80% year-on-year growth for this product line.
