The steel ball lapping process is a precision finishing operation used after hard grinding to improve ball geometry, dimensional consistency and surface condition. It removes a controlled amount of material from hardened or pre-finished balls through repeated rolling contact between grooved lapping plates and fine abrasive media.
For a steel ball manufacturer, successful lapping is not simply a matter of making the balls look bright. The process must control three different quality characteristics:
Roundness or spherical form: how closely each ball approaches a geometrically correct sphere;
Diameter variation: the difference between measured diameters on one ball and between balls within the same production lot;
Surface finish: the microscopic surface texture and the absence of scratches, pits, burns and other defects.
A properly controlled precision ball lapping process can improve consistency after hard grinding. However, the finished grade cannot be determined by the lapping machine alone. Ball material, incoming geometry, heat-treatment condition, process allowance and inspection capability must all match the required specification.
Steel ball lapping is a low-removal finishing process in which balls roll between accurately prepared grooved plates while fine abrasive particles remove microscopic high points from their surfaces.
Unlike rough grinding or hard grinding, lapping is designed to make small, controlled corrections rather than remove a large machining allowance.
The process is commonly used for:
AISI 52100, GCr15, 100Cr6 and SUJ2 bearing steel balls;
Hardened 420 and 440C stainless steel balls;
Selected carbon and alloy steel balls;
Precision spherical components after grinding;
Bearing balls requiring improved geometry and surface consistency.
Lapping may be divided into intermediate finishing, fine lapping and superfinishing stages. The abrasive size, pressure, speed and processing time normally become progressively more controlled as the balls approach their final dimensions.
| Process | Main Purpose | Typical Material Removal | Main Quality |
| Hard grinding | Removes the main allowance after heat treatment | Relatively high | Corrects diameter and basic ball geometry |
| Fine lapping | Refines ball geometry and diameter consistency | Low and controlled | Improves roundness and lot consistency |
| Superfinishing | Removes microscopic surface peaks | Very low | Improves surface finish and final dimensional stability |
| Inspection and sorting | Verifies the finished quality | None | Confirms diameter, roundness, roughness and surface condition |
The 3M7480 Vertical Steel Ball Grinding Machine is positioned for hard grinding and precision grinding of φ3–20 mm balls after heat treatment.

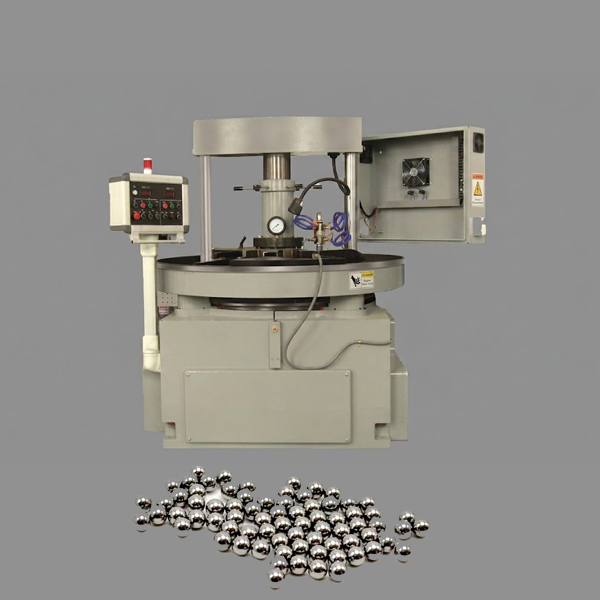

The 3ML4780D Vertical Steel Ball Lapping Machine is the downstream equipment used for finishing lapping and superfinishing of φ3–25 mm balls after hard grinding.
Roundness describes the variation of a measured circular profile from a perfect circle. For a complete ball, manufacturers may also refer to sphericity or spherical-form deviation.
A ball can meet its nominal diameter but still have lobing, high points or uneven geometry. These errors may increase vibration, noise, friction and contact stress in bearings, valves and other rolling systems.
The lapping process improves roundness through repeated changes in the ball’s rolling orientation. When the plate grooves, pressure distribution and ball motion are properly controlled, different areas of the ball surface contact the abrasive zone instead of repeatedly following one fixed path.
Diameter control includes more than the nominal ball size.
Manufacturers normally evaluate:
The largest and smallest measured diameter of an individual ball;
The mean diameter of each inspected ball;
The difference between the largest and smallest mean diameters in one production lot;
The relationship between the actual size and the customer’s specified gauge.
Surface finish refers to the microscopic condition of the ball surface. A visually polished ball is not necessarily a precision-finished ball.
Important surface characteristics include:
Surface roughness;
Scratches and abrasive marks;
Pits and material inclusions;
Grinding burns;
Flat spots;
Corrosion or cleaning stains;
Residual lapping compound.
If the hard-ground balls have severe lobing or excessive size variation, fine lapping may require too much time and allowance. Improving the upstream hard-grinding process usually produces better final results than attempting to correct every defect during lapping.
Uneven grooves or excessive plate runout can reproduce errors on the balls. Plate inspection, conditioning and replacement intervals should be part of the production control plan.
Excessive pressure may increase removal rate but can also create uneven contact, temperature rise and new surface damage. Pressure should be increased only after evaluating the resulting diameter, roundness and surface condition.
The balls must change orientation repeatedly during lapping. A repetitive or restricted rolling path may leave certain surface areas insufficiently processed and preserve lobing errors.
Roundness should be checked at planned sampling intervals. Waiting until the entire batch is finished increases the risk of processing a large quantity under unsuitable conditions.
AISI 52100 bearing steel balls are commonly through-hardened to achieve high hardness and wear resistance.
The lapping process should consider:
High material hardness;
Heat-treatment distortion;
Incoming grinding allowance;
Abrasive cutting ability;
Plate wear;
Final bearing-grade geometry and surface requirements.
420 and 440C are hardenable martensitic stainless steels. Their hardness and wear resistance make them suitable for precision lapping after heat treatment and hard grinding.
The selected process should account for:
Actual hardness after heat treatment;
Corrosion-control requirements;
Surface cracks or grinding burns;
Required magnetic, wear and sealing performance.
304 and 316 stainless steel balls are generally softer than hardened 420, 440C or AISI 52100 balls. Their cold-worked surface condition and greater tendency to smear or gall should be considered when selecting abrasives, fluids, pressure and plates.
The objective is often a smooth, clean surface for pumps, valves, dispensing systems, food equipment and low-load mechanisms rather than high-load bearing performance.
Carbon and alloy steel balls may be supplied soft, case-hardened, quenched and tempered or through-hardened. The exact material condition must be confirmed before setting the lapping process.
The same parameters should not be applied automatically to soft low-carbon balls and hardened alloy steel balls.
Ra targets run 0.020 µm at G10 to 0.100 µm at G100. Finish is set by abrasive sequence and cleanliness — pressure and speed only degrade it when set wrong.
Every stage must remove the previous stage's damage, which runs deeper than its visible scratches. Skipping from a coarse stage to an ultra-fine one asks a sub-micron removal stage to clear marks several microns deep. It cannot. Time each stage against the previous stage's marks, not the clock.
Lapping compresses spread by a ratio, not to a value. Oversize balls carry more load and remove faster, so a batch converges — but the pressure difference driving that convergence shrinks as the spread narrows, and the correction stalls. Running longer past that point spends allowance for almost nothing. Set incoming spread from your compression ratio, and let sorting take the final microns.
Pressure drift becomes size spread. Removal rate follows pressure; if pressure wanders during a long cycle, so does diameter. The 3ML4780D holds it with hydraulic pressurisation, constant-pressure locking and mechanical pressure retention.
Hard grinding removes the main allowance after heat treatment and establishes the basic ball diameter and geometry. Lapping is a downstream precision-finishing process used to improve roundness, lot diameter consistency and surface finish.
Lapping can correct limited roundness and spherical-form errors when sufficient allowance remains and the rolling trajectory is stable. Severe lobing, heat-treatment distortion or grinding defects should normally be corrected upstream.
The main factors are incoming surface condition, abrasive size and concentration, plate material and condition, pressure, relative speed, fluid cleanliness, temperature and process time.
Possible causes include excessive incoming size variation, mixed material hardness, uneven ball circulation, inconsistent pressure, plate wear or insufficient final sorting.
No. AISI 52100, 420, 440C, 304, 316, carbon steel and alloy steel have different hardness, microstructure and finishing behavior. Abrasives, fluids, pressure and speed must be matched to the confirmed material condition.
The machine is only one part of the manufacturing system. The finished grade also depends on incoming quality, heat treatment, hard grinding, plates, abrasive process, operator control, environmental conditions and inspection capability.
Provide the ball material, diameter range, hardness, incoming condition, target grade, roundness, surface roughness, batch size, production capacity and local electrical requirements.
