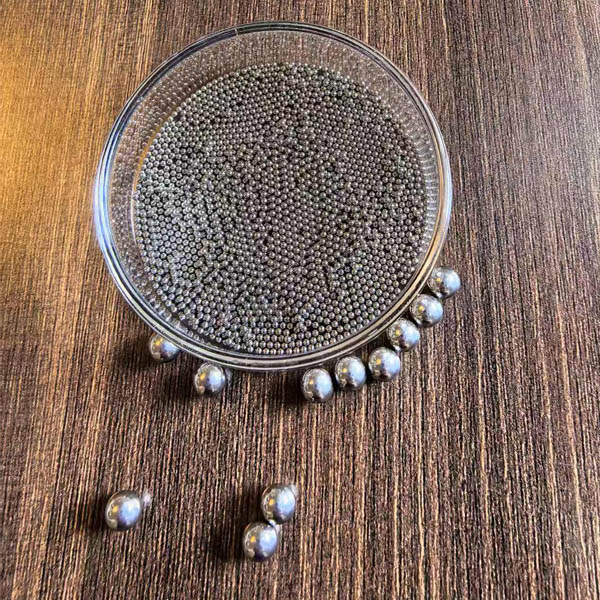

For industrial procurement managers, strategic buyers, and mechanical engineers, sourcing components requires a balance of metallurgical precision, supply chain stability, and cost-efficiency. AISI 304 stainless steel balls (internationally recognized as SUS304 or EN 1.4301 precision spheres) serve as the global industrial standard for general corrosion resistance and mechanical reliability. Whether your production line requires a micro 0.5 mm sphere for a cosmetic lotion pump or a large 50.8mm ball for a fluid check valve, partnering directly with a dedicated stainless steel ball manufacturer ensures your components are engineered to exact dimensional tolerances.
As a leading direct manufacturing factory, we ensure every batch of raw material strictly complies with global grading frameworks such as ISO 3290, DIN 5401, and ABMA. Commonly referred to as 18/8 stainless steel
| Chemical Element | Composition Percentage (%) |
| Chromium (Cr) | 18.00% – 20.00% |
| Nickel (Ni) | 8.00% – 10.50% |
| Manganese (Mn) | Max 2.00% |
| Carbon (C) | Max 0.08% |
| Iron (Fe) | Balance |
Unlike hardened martensitic alloy spheres (such as AISI 440C or Chrome Steel AISI 52100), AISI 304 stainless steel balls cannot be strengthened via conventional thermal heat treatment. Their structural and load-bearing performance is defined by the following precise mechanical limitations:
| Mechanical Property / Parameter | Typical Value / Spec Range |
| Hardness Range (Rockwell C) | 25 – 39 HRC |
| Hardness Range (Brinell) | 170 – 210 HB |
| Tensile Strength | 80,000 - 180,000 PSI |
| Yield Strength | 50,000 - 150,000 PSI |
| Modulus of Elasticity | 28,000,000 - 29,000,000 PSI |
| Density | 7.93 g / cm³ (0.286 lbs/ in⊃3;) |
The Metallurgical Fact: In raw ingot form, annealed 304 stainless steel ball is 100% non-magnetic. However, the standard precision steel ball manufacturing process requires severe mechanical stresses, including cold heading, high-pressure wire drawing, and rotary flashing. This physical distortion induces a localized phase transformation from Austenite to Martensite, generating residual magnetism.
For basic fluid mixing beads, household sliders, or aerosol spray valves, this slight magnetism is completely harmless. However, for medical instrumentation, electronic sensors, or aerospace valves, zero-magnetism is mandatory. As an advanced OEM/ODM steel ball supplier, we solve this by executing secondary solution annealing and custom demagnetization (Demag) processing in-house.
Our direct steel ball manufacturing factory provides immediate volume availability across a highly versatile dimension and precision spectrum. We seamlessly accommodate both international metric blueprints and standard imperial specifications for premium stainless steel balls
Micro-Precision Steel Ball Dimensions (0.5mm to 1.5mm)
As a specialist precision steel ball manufacturer, our stocked micro dimensions include 0.5 mm, 0.8 mm, 1.0 mm, and 1.5 mm AISI 304 stainless steel balls . These ultra-small spheres are extensively utilized by global B2B manufacturers for miniature cosmetic lotion check valves, delicate electronic components, medical dosing apparatus, and micro-fluidic systems.
Standard & Large Scale Diameter Range (Up to 2 Inches )
Our heavy-duty industrial steel ball production lines extend manufacturing runs up to 50.8mm (2inches). These large-diameter 304 spheres are highly requested for high-flow pipeline valves, heavy casters, agricultural equipment, and specialized industrial grinding media .
Certified Precision Grade Alignment (G50 to G1000 )
We calibrate our automated sorting machinery and laser inspection equipment to deliver specific geometric tolerances according to ISO 3290 and ABMA frameworks. We provide bulk wholesale supply across the entire precision gradient of stainless steel balls :
• High-Precision Grades (Grade 50 / G50 & Grade 100 / G100): Engineered with tight diameter tolerances and superior sphericity for air-tight liquid seals, aerosol pumps, and calibration instruments.
• Standard Commercial Grades (Grade 200 / G200 to Grade 1000 / G1000): Cost-effective, high-volume options optimized for fluid agitation, tumbling media , and slow-moving mechanical rollers.
Navigating the global marketplace requires partnering with a certified entity that can deliver scalable production volume, strict quality controls, and a competitive bulk wholesale price. At RS Bearing Ball(www.rsbearingball.com), we bridge the gap between large-scale industrial capability and flexible catalog options.
By choosing a dedicated stainless steel ball manufacturer over a generic trading firm, you secure:
Complete Technical Traceability: Every production run is dispatched with authentic Material Test Certificates (MTC), exact chemical heat analysis sheets, and ISO 3290 geometric verification.
Tailored Surface Treatments:From specialized passivation and high-gloss mirror polishing to precision demagnetization treatments, we alter the material to fit your exact operational environment.
Rapid Global Sampling:We maintain massive inventories of standard millimeter and fractional inch sizes to support urgent industrial prototyping and production scaling.
