A polypropylene ball can be a practical moving seal in a low-load check valve, dosing component or fluid-control assembly, but material name alone does not determine whether the valve will work. The engineer must evaluate the density of the ball relative to the process fluid, the ball-to-seat geometry, dimensional tolerances, chemical exposure, temperature, orientation and required cracking pressure.
Standard unfilled polypropylene resin typically has a density of approximately 0.890–0.915 g/cm³. This makes a solid PP ball lighter than water, but it does not automatically make every polypropylene valve ball suitable for every check valve. A ball that floats in water may sink in a lower-density hydrocarbon, move in the wrong direction in a gravity-return design, or fail to seal if the seat contact and tolerance stack are poorly controlled.

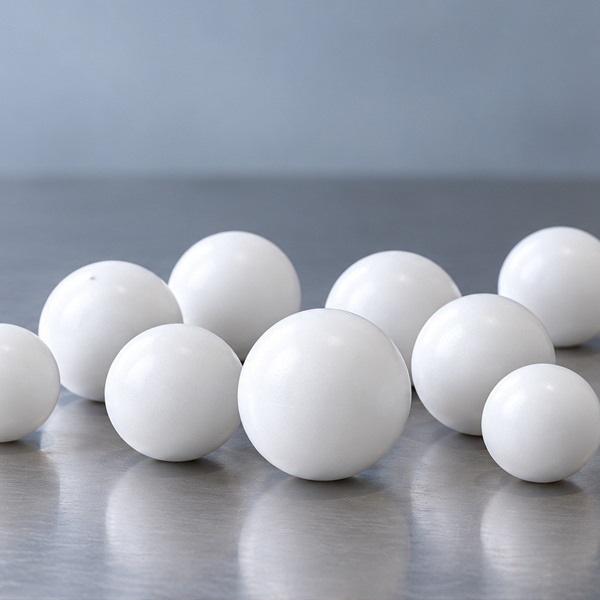

PP plastic balls are considered for selected check valve applications because polypropylene combines low density, low moisture absorption, chemical resistance to many aqueous solutions and lower mass than metal or ceramic balls.
Typical applications may include:
Chemical dosing and metering components;
Water-treatment and irrigation assemblies;
Low-pressure liquid dispensers;
Laboratory fluid-handling devices;
Float-operated components;
Selected pump and valve assemblies where low moving mass is beneficial.
The important qualification is selected applications. PP is not a universal replacement for stainless steel, ceramic, POM or PTFE. Temperature, sustained seat load, creep, fluid chemistry and valve design can all change the result.
Buyers who first need to compare polypropylene with polyethylene can read our guide to PP balls vs polyethylene balls. For PP product specifications and custom enquiries, visit our polypropylene PP plastic balls page.
Unfilled PP resin typically falls within approximately 0.890–0.915 g/cm³, depending on resin grade, additives, fillers and processing. For engineering estimates in this article, a nominal value of 0.90 g/cm³ is used.
The theoretical mass of a solid spherical ball is:
Ball mass = material density × π × ball diameter³ ÷ 6
When density is expressed in g/cm³ and diameter in millimetres:
Mass (g) = density (g/cm³) × π × diameter³ (mm³) ÷ 6000
The following figures use a nominal PP density of 0.90 g/cm³. They are theoretical values, not shipping or inspection limits.
| Ball diameter | Sphere volume | Estimated mass |
| 6 mm | 0.113 cm³ | 0.102 g |
| 8 mm | 0.268 cm³ | 0.241 g |
| 10 mm | 0.524 cm³ | 0.471 g |
| 12 mm | 0.905 cm³ | 0.814 g |
| 16 mm | 2.145 cm³ | 1.930 g |
| 20 mm | 4.189 cm³ | 3.770 g |
| 25 mm | 8.181 cm³ | 7.363 g |
A solid unfilled PP ball normally floats in water because its density is lower than approximately 1.00 g/cm³. The same ball may not float in a liquid with a density below the ball density.
The net buoyancy direction can be screened by comparing:
Net buoyancy force = (fluid density − ball density) × displaced volume × gravitational acceleration
For example, a solid 10 mm PP ball with a density of 0.90 g/cm³ has a volume of approximately 0.524 cm³. In water at approximately 1.00 g/cm³, the density difference is 0.10 g/cm³, giving an upward buoyancy equivalent to only about 0.052 g of mass, or approximately 0.00051 N.
That force is small compared with a typical spring preload, but it can matter in a springless, gravity-sensitive or very low-cracking-pressure valve.
A check valve seals at the contact region between the ball and the seat. The catalogue ball diameter alone does not define this contact.
The design review should include:
Finished ball diameter and tolerance;
Seat opening diameter and tolerance;
Seat angle, radius or elastomer geometry;
Seat land width;
Ball roundness and surface defects;
Ball travel and cage clearance;
Alignment between the guide, ball and seat;
Expected pressure direction.
For a simple circular seat opening, a useful first screening calculation is:
Radial overlap = (ball diameter − seat opening diameter) ÷ 2
This is not a complete leakage calculation, but it confirms that the ball cannot pass through the seat and shows how much nominal geometric overlap is available.
Assume the drawing specifies:
PP ball diameter: 10.00 ±0.05 mm;
Seat opening: 8.00 +0.10/−0.00 mm.
The minimum possible ball diameter is 9.95 mm, and the maximum possible seat opening is 8.10 mm.
Minimum radial overlap = (9.95 − 8.10) ÷ 2 = 0.925 mm
The maximum possible ball diameter is 10.05 mm, and the minimum seat opening is 8.00 mm.
Maximum radial overlap = (10.05 − 8.00) ÷ 2 = 1.025 mm
This example demonstrates the calculation method only. It does not establish a universal 10 mm ball/8 mm seat rule. Seat material, contact angle, pressure, deformation and leakage requirement still need to be evaluated in the assembled valve.
A hard PP ball contacting a soft elastomer seat behaves differently from a PP ball sealing directly against a rigid PP, POM or metal seat. A narrow contact region may produce higher local stress, while a wide or poorly aligned contact may prevent consistent seating.
For this reason, statements such as “the ball should always be 20% larger than the seat” should not be used as a general design rule. The correct relationship must come from the actual seat geometry, material pair, pressure range and validated leakage performance.
Ball diameter influences:
Available radial overlap;
Ball travel;
Cage clearance;
Contact position on the seat;
Assembly consistency from batch to batch.
The valve drawing should state a numerical diameter tolerance rather than only “10 mm PP ball.” The acceptable tolerance must be agreed according to the ball manufacturing process, valve dimensions and required leakage performance.
Roundness error can prevent the contact region from closing uniformly around the seat. Rotating the same ball after assembly may then change the leakage result. Where leakage is important, the inspection plan should distinguish between:
Individual diameter readings;
Roundness or sphericity;
Batch-to-batch diameter variation.
For moulded PP balls, the parting line, gate area and trimmed flash must be reviewed. A visually small raised feature can become a leakage path if it enters the seat contact zone.
The drawing or purchase specification should define:
Whether a visible parting line is permitted;
Maximum allowable flash or raised material;
Whether the gate mark may contact the seat;
Surface defect limits in the sealing zone;
Whether polishing, machining or sorting is required.
| Feature | Solid PP ball | Hollow PP ball |
| Mass consistency | Primarily controlled by density and diameter | Also depends on wall thickness and weld or mould quality |
| Compression resistance | Generally higher | More sensitive to pressure and wall deformation |
| Buoyancy | Lower buoyancy than an equivalent hollow ball | Higher buoyancy possible |
| Leak risk from ball body | No internal cavity | Joint or wall integrity may require testing |
| Typical use | Moving seal, low-load valve element, guide component | Float and level-control applications |
| Material | Approximate density | Main advantage | Main limitation to review |
| PP | 0.890–0.915 g/cm³ | Lightweight; resistant to many aqueous chemicals | Creep, thermal expansion and limited stiffness at elevated temperature |
| HDPE | Approximately 0.94–0.97 g/cm³ | Impact toughness and low-temperature performance | Lower stiffness and application-specific chemical/temperature limits |
| POM | Approximately 1.4 g/cm³ | Higher stiffness and dimensional stability than PP | Chemical resistance differs from PP; acid exposure requires care |
| PTFE | Approximately 2.1–2.3 g/cm³ | Broad chemical resistance and low friction | High creep and greater mass; dimensional control must be reviewed |
| 316 stainless steel | Approximately 8.0 g/cm³ | Strength, stiffness and temperature capability | Much heavier; corrosion depends on chloride, chemistry and surface condition |
| Alumina ceramic | Approximately 3.6–3.9 g/cm³ | Hardness, wear resistance and chemical stability | Brittle impact behaviour and higher mass than PP |
RISHENG manufactures polypropylene PP plastic balls for standard and custom industrial requirements. As a PP plastic ball manufacturer in China, we review the requested diameter, tolerance, material condition, surface requirements, application and order quantity before confirming production feasibility.
For a check valve project, send us:
Ball and seat drawings;
Fluid name and concentration;
Operating-temperature range;
Valve orientation;
Pressure and leakage requirements;
Prototype and production quantities.
No. PP balls are suitable only when their density, chemical resistance, temperature capability, stiffness, creep behaviour and ball-to-seat fit meet the valve requirements. High-pressure, high-temperature or highly oxidizing environments may require another material.
Standard solid unfilled PP balls normally float in water because PP density is typically approximately 0.890–0.915 g/cm³. Filled compounds and non-aqueous fluids may produce a different result.
Start with the seat opening, seat geometry, ball travel and cage clearance. Calculate minimum overlap using the smallest permitted ball and largest permitted seat opening, then validate contact and leakage in the complete valve. There is no universal ball-to-seat diameter ratio.
PP resists many aqueous acids and alkalis, but suitability depends on the exact chemical, concentration, temperature, exposure time and mechanical load. Confirm the resin supplier’s data and test the actual valve under representative conditions.
No. Cracking pressure depends on spring preload, effective seat area, orientation, ball weight, buoyancy, friction, adhesion, seat deformation and tolerances. It must be measured on the assembled valve.
They may be suitable when diameter, roundness, parting line, gate marks and surface defects meet the valve’s leakage requirements. The sealing zone and acceptance limits should be defined on the drawing or by approved samples.
Provide the ball diameter and tolerance, seat drawing, fluid chemistry, temperature, pressure, valve orientation, leakage limit, target cracking pressure, quantity and required documentation.
