In the motorcycle repair and parts market, the quality of bearing steel balls directly determines the service life, smoothness of rotation, and noise control of thrust bearings. Especially the commonly used 4.7625mm (3/16 inch), 6.35mm (1/4 inch), and 9.525mm (3/8 inch) sizes, which are used in most motorcycle front wheels, rear wheels, steering columns, engine crankshafts, and other thrust bearings, and the most popular material is GCr15 high-carbon chromium bearing steel.
High Hardness and Wear Resistance: GCr15 (equivalent to international grade 52100) achieves a stable hardness of HRC60-66 after quenching and tempering, with virtually no wear points on the surface, significantly extending bearing life.
High Precision and Good Roundness: High-quality GCr15 steel balls generally reach G10-G16 grade (even G5 grade), with a roundness error ≤0.00025mm and a surface roughness Ra≤0.02μm, resulting in smooth rotation without jamming or abnormal noise.
Strong Fatigue Resistance: Motorcycles frequently operate under high-frequency vibration conditions. GCr15 steel balls have a dense internal structure, providing excellent resistance to contact fatigue and reducing the likelihood of pitting and spalling.
Best Cost-Effectiveness: Compared to imported SUJ-2 and stainless steel 440C, GCr15 steel balls are more affordable while meeting the requirements of over 90% of motorcycle thrust bearings.
| Metric diameter | Common names | Main Applications |
| 3.175mm | Small steel ball | Scooter front fork lower thrust bearings, Qingqi Suzuki series |
| 4.7625mm | Most common steering steel ball | Honda CB400, Haojue EN125, Qianjiang 150 all steering columns |
| 5.000mm | National standard universal steel ball | Wuyang Honda, Jianshe Yamaha some models |
| 6.35mm | Clutch steel ball | Clutch thrust bearings, crankshaft thrust bearings for 250cc and above |
| 7.144mm | Medium and large displacement steering steel ball | Loncin 300, CFMoto 650, Guobin motorcycle steering columns |
| 7.938mm | Large steel ball | Rear shock absorber connecting rods, thrust bearings for some large-displacement motorcycles |
| 8.000mm | European standard universal | Imported Ducati, BMW some modified thrust bearings |
| 9.525mm | Extra-large steering steel ball | Harley-Davidson, BMW, ADV adventure motorcycle steering column reinforced version |
Check the luster: High-quality steel balls have a mirror-like, silvery-bright surface with no obvious machining marks; Listen to the sound: Gently tap with tweezers; a high-quality ball will produce a clear, resonant sound (inferior balls will sound dull); Test the hardness: A hardness tester will show a hardness of HRC62 or higher; Check the packaging: Reputable manufacturers use anti-rust oil, double-layer plastic bags, and cardboard boxes for packaging, and include a material report.
G40 and below: loose and noisy after 30,000 kilometers. G28-G40: normal wear after 50,000-80,000 kilometers. G16-G10: still silky smooth after 100,000-150,000 kilometers. G5-G3 (military grade): for modification enthusiasts and racing car enthusiasts, virtually indestructible.
All our GCr15 steel balls (4.7625mm, 6.35mm, 9.525mm) are packaged to international export standards, ensuring they will not rust or be damaged for two years, arriving with a mirror-like shine.

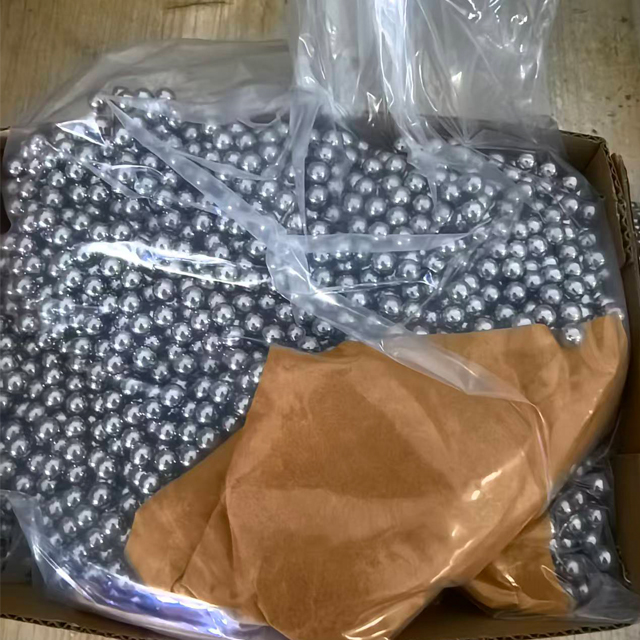

Each bag of steel balls is first coated with imported VCI long-lasting rust-preventive oil, then placed in a food-grade thickened plastic bag, precisely counted, vacuum-sealed, and then placed in a five-layer cardboard box. The inside of the box is lined with pearl cotton and shock-absorbing foam, and finally secured with 3-5 plastic steel straps. Small orders are 20-25 kg per box; large orders are shipped on wooden pallets with stretch film and steel corner protectors, in full containers or pallets—the boxes won't break even if dropped.
