If you have quoted both grades recently, you already know the pattern: 420 stainless steel balls usually come in 20% to 40% below 440C balls of the same diameter and precision grade. The gap is real, and it is not a quality trick. It comes down to raw material cost, heat treatment time, and how long each grade takes to grind and lap. For a large share of applications, check valves, sprayer pumps, low-load bearings, hardware, 420 does the job, and the extra money buys nothing you will ever notice in service.
We produce both grades at our factory in CHANGHZOU,JIANGSU CHINA, so this comparison is based on what happens on our production floor and in our customers' orders, not on a spec sheet alone.
| AISI 420 | AISI 440C | |
|---|---|---|
| Carbon | 0.15-0.40% | 0.95-1.20% |
| Chromium | 12-14% | 16-18% |
| Hardness (hardened balls) | HRC 50-55 | HRC 58-62 |
| Corrosion resistance | Moderate, passivated | Moderate, passivated |
| Magnetic | Yes | Yes |
| Toughness under impact | Better | More brittle |
| Common uses | Valve balls, sprayers, low-load bearings, hardware | Precision bearings, high-cycle contact, abrasive service |
Raw material：440C wire and bar stock carries more chromium and far more carbon, with tighter melt control. The steel costs more per ton before we cut the first slug.

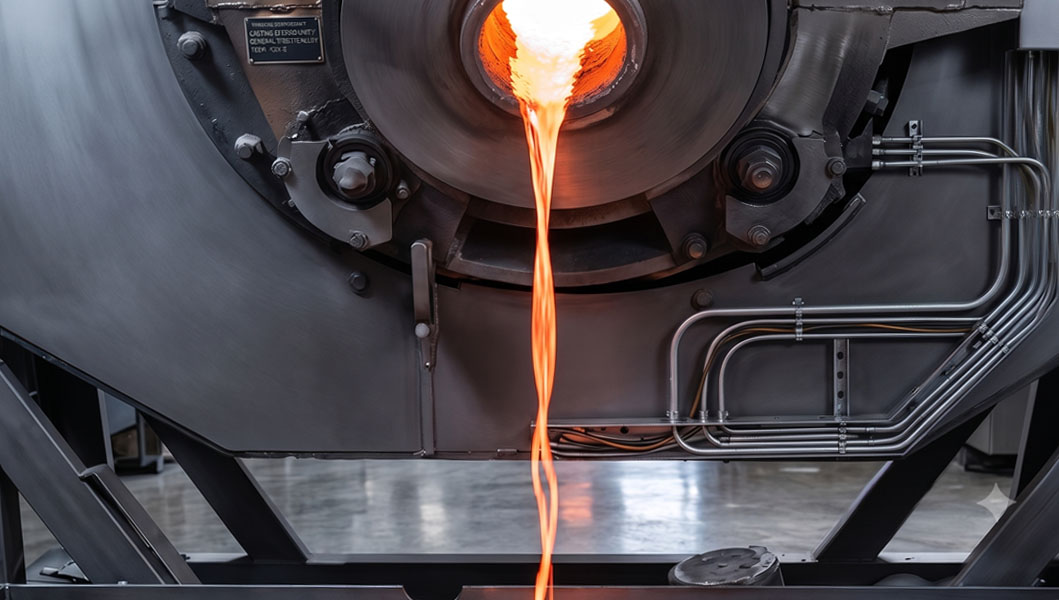

Heat treatment：440C hardens at a higher austenitizing temperature and, to control retained austenite, usually gets a sub-zero (deep freeze) treatment plus double tempering. That means extra furnace time, extra cryogenic cycles, extra energy per batch. 420 takes a simpler quench-and-temper cycle.
Grinding and lapping：This is the cost driver buyers rarely see. At HRC 58 and above, material removal slows down and abrasive wheels wear out faster. Lapping a 440C ball to grade G10 or G16 simply takes longer per thousand pieces than lapping 420 to the same grade. Machine hours are money.
Scrap rate：High-carbon martensite is less forgiving. Quench micro-cracks show up more often in 440C, so rejection at final inspection runs higher, and that cost is baked into every quoted price.
Add these up and the gap widens as diameters get larger and precision grades get tighter. On small commodity sizes at G100 the difference may be modest; on large balls at G16 it is significant.
| Standard | 420 equivalent | 440C equivalent |
|---|---|---|
| AISI (US) | 420 | 440C |
| JIS (Japan) | SUS420J1 / SUS420J2 | SUS440C |
| EN (Europe) | 1.4021 / 1.4028 / 1.4034 | 1.4125 |
| GB (China) | 20Cr13 / 30Cr13 / 40Cr13 | 9Cr18Mo (102Cr17Mo) |
Hardened 420 stainless steel balls typically measure HRC 50-55. 440C reaches HRC 58-62 after heat treatment, which is bearing-steel territory. In practice this means a 440C ball resists indentation (brinelling) and rolling-contact fatigue better under sustained load. But if your ball just sits and seals, or moves a few times a minute, that extra hardness is idle capacity you paid for.
On paper 440C carries more chromium (16-18% vs 12-14%), so you might expect clearly better corrosion resistance. Reality is more even. Much of 440C's chromium gets tied up in hard chromium carbides during heat treatment. Those carbides are exactly what make it wear-resistant, but carbide formation pulls chromium out of the surrounding matrix, where it would otherwise be fighting rust. The result: both grades land in the same moderate corrosion class. Both should be passivated. Both handle fresh water, steam, air, oils, fuels, and mild chemical media well. Neither belongs in seawater, chloride-rich, or aggressive acid service; that is 316 stainless steel ball territory.
Both grades are magnetic. That surprises buyers who assume stainless means non-magnetic; only austenitic grades like 304 and 316 are (mostly) non-magnetic. A detail almost nobody mentions: 420 has somewhat higher magnetic permeability than 440C, so a magnet grips it more strongly. If your design uses a magnet to hold or actuate the ball, as in some magnetic check valves and sensor assemblies, 420 is the better choice, not just the cheaper one.
Lower carbon makes 420 the tougher of the two. Under impact or shock loading it deforms slightly rather than chipping. 440C, being harder, is more brittle, and drop loads or edge impacts are where it can crack. For applications with vibration and impact rather than smooth rolling, 420's toughness is a genuine advantage, not a compromise.
Check valves and pump valve balls in water, air, oil, fuel, and mild chemical media. The ball seats, seals, lifts, reseats. Loads are low, cycles are gentle, and HRC 50+ is far more than the job needs. This is the single largest use of the 420 balls we ship.
Low-load, low-speed bearings: casters, furniture slides, conveyor rollers, bicycle headsets, hand tools. Rolling-contact fatigue only becomes the limiting factor at sustained speed and load. These applications never get there.
Sprayer pumps, dispensers, and aerosol valves:Millions of trigger-sprayer check balls run on 420. If the media is not chloride-heavy, a 420 ball outlasts the product it sits in.
Locks, latches, detents, and hardware:The ball clicks into a groove a few thousand times over years. Hardness beyond HRC 50 adds nothing here.
Decorative and light structural uses :where you want a hard, polishable, rust-resistant sphere at the lowest cost.
Precision bearings under sustained load and speed:Rolling-contact fatigue life scales strongly with hardness. For spindles, motors, and instrument bearings that run continuously, 440C's HRC 58+ pays for itself in service life.
Abrasive or high-cycle service:Metering valves cycling millions of times, media with suspended particles, anywhere the ball surface is being actively worn down.
Drawings and standards that specify it:If the print says 440C, HRC ≥58, or references bearing-ball standards, supply what is specified. Substituting 420 to save cost on a specced part is how warranty claims start.
Hard-to-service locations:When replacing a failed ball means a technician visit or a production stop, the ball price is noise. Buy the longer-lived grade.
Is the ball in continuous rolling contact under load? Yes: lean 440C. No: 420.
Does the drawing explicitly call out a grade or HRC ≥58? Yes: 440C, no debate.
Is the media chloride-rich, marine, or acidic? Yes: neither. Look at 316 or higher alloys.
Is the ball magnet-actuated? Yes: 420 grips a magnet better.
Is replacement cheap and easy? Yes: the savings on 420 compound across every unit you build.
As a 420 stainless steel balls manufacturer that also produces 440C in house, we supply both grades to OEM and wholesale buyers:
Sizes: 0.5 mm-50.8 mm
Precision grades: G10 to G1000 per ISO 3290
Condition: hardened, tempered, and passivated. Annealed (soft) 420 balls are also available for parts that need drilling, tapping, or re-forming after purchase.
Hardness: 420 at HRC 50-55, 440C at HRC 58-62, with test certificates for every batch
1.Are 420 stainless steel balls magnetic?
Yes. 420 is a martensitic stainless steel, so it is strongly magnetic, and slightly more responsive to a magnet than 440C. For non-magnetic balls, choose 304 or 316.
2.Will 420 stainless steel balls rust?
Passivated 420 balls resist fresh water, steam, oils, and mild chemicals well. They are not suitable for seawater or chloride-heavy media; use 316 for that.
3.What hardness are 420 stainless steel balls?
Typically HRC 50-55 in the hardened and tempered condition. Annealed 420 balls are much softer (roughly HRB 90s) for machining.
4.How much cheaper are 420 stainless steel balls than 440C?
For the same size and precision grade, expect roughly 20-40% lower pricing, with the gap widening on larger diameters and tighter grades.
5.Is 440C worth it for stainless steel valve balls?
Usually not. Valve and check balls see low loads and gentle cycles, so 420 delivers the same service life at lower cost. 440C earns its premium in continuous bearings and abrasive service.
6.What is the equivalent of AISI 420 in JIS, EN, and GB standards?
Closest equivalents: SUS420J1/J2 (JIS), 1.4021/1.4028/1.4034 (EN), 20Cr13/30Cr13/40Cr13 (GB). For 440C: SUS440C, 1.4125, 9Cr18Mo.
